Week 5 - Anti-Forensics Technique-2
Lab 4 - Data Carving: Recovering an image from a Docx file
Scenario

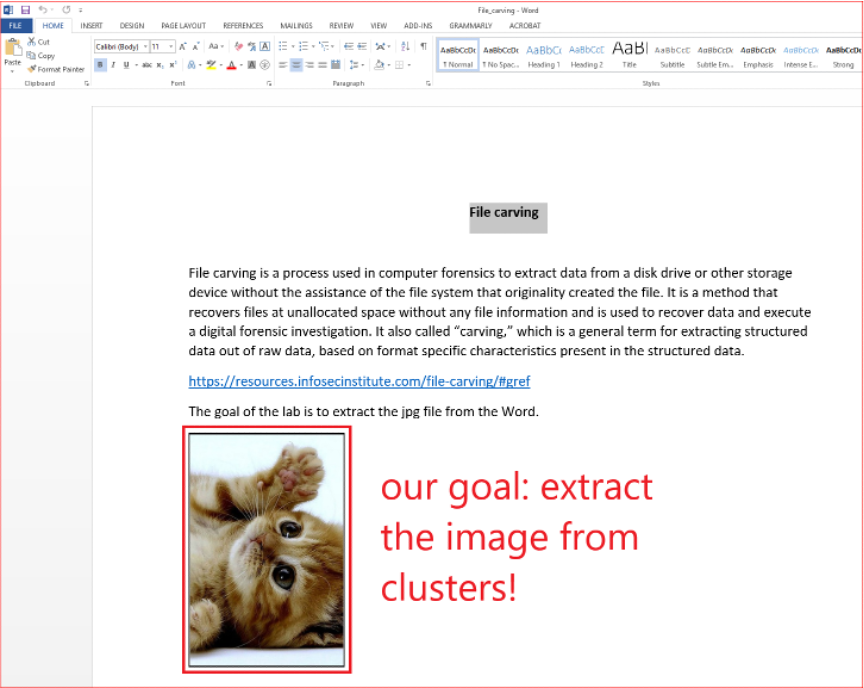

You are given a corrupted Word document (File_carving.docx).
The file cannot be opened normally.
Your task is to manually carve an embedded JPEG image from the file using: - A hex editor
- Command-line tools
- Automated carving tools
Problem Context
The file is corrupted (accidentally or intentionally). We suspect it contains an embedded image that must be extracted manually.
Key Question
How can we recover data from a file that cannot be opened normally?
JPEG Header and Trailer
- Header (Start of Image):
FFD8FFE9 - Trailer (End of Image):
FFD9

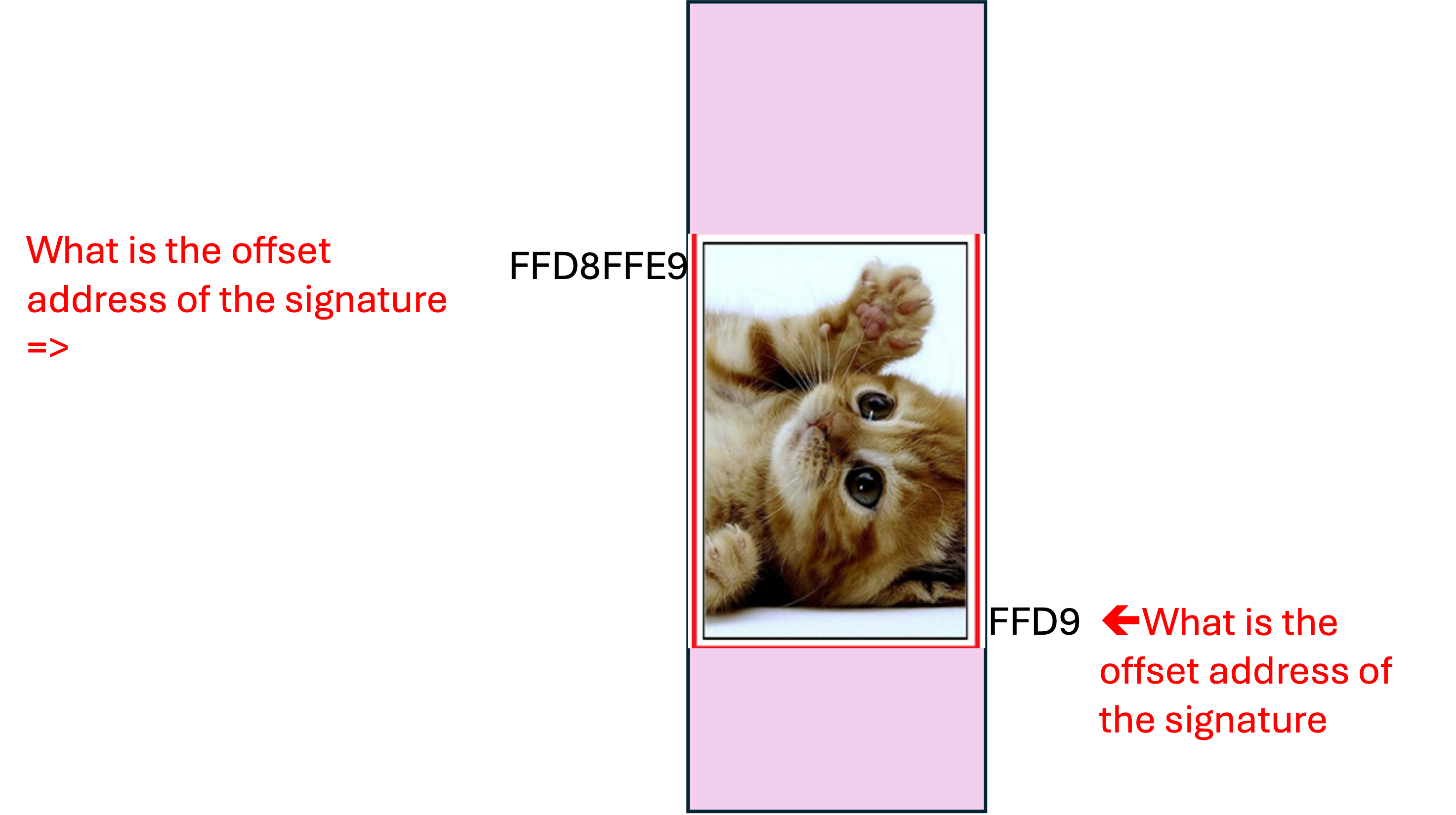

Task
Identify: - The offset address of the JPEG header - The offset address of the JPEG trailer

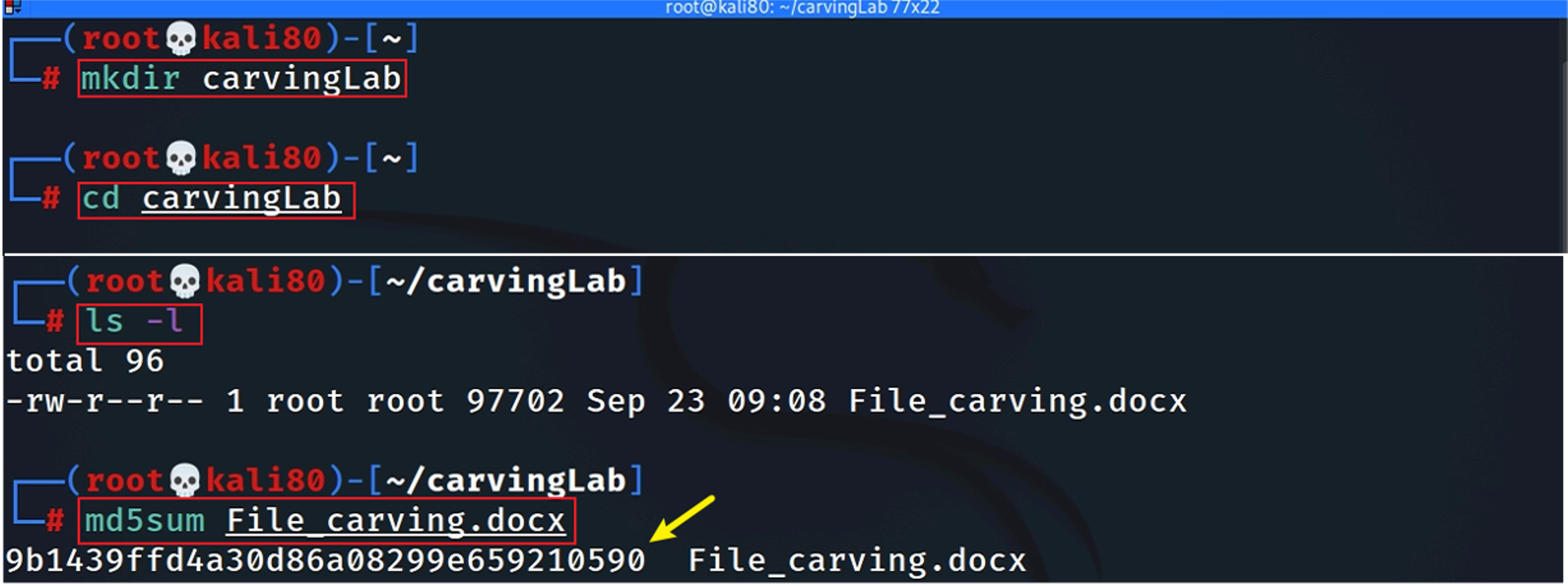

Step 1: Create Working Directory
mkdir carvingLab
cd carvingLab
Step 2: Download the File and place in the folder
- You can can either downlaod from here
- Or find it on Moodle
Step 3: Verify File
ls -l
md5sum File_carving.docx

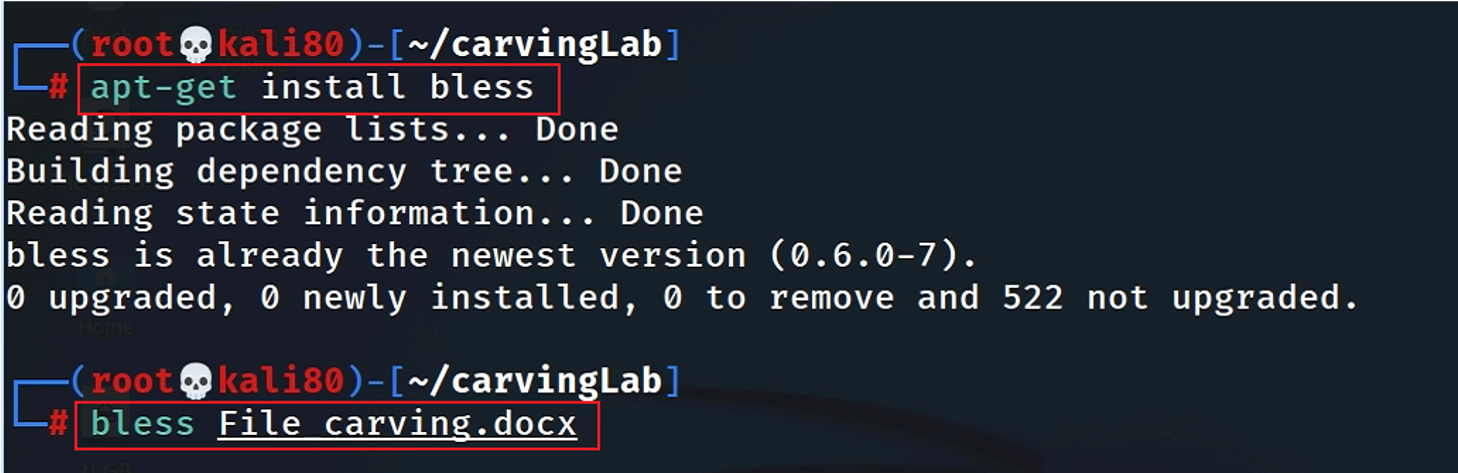

Step2: Install Hex Editor (if needed)
apt-get install bless
Open File
bless File_carving.docx
Step3: Locate JPEG Header
Search for:
FFD8FFE9
Header found at:
0x0F5E
Carving must begin at the start of this offset.

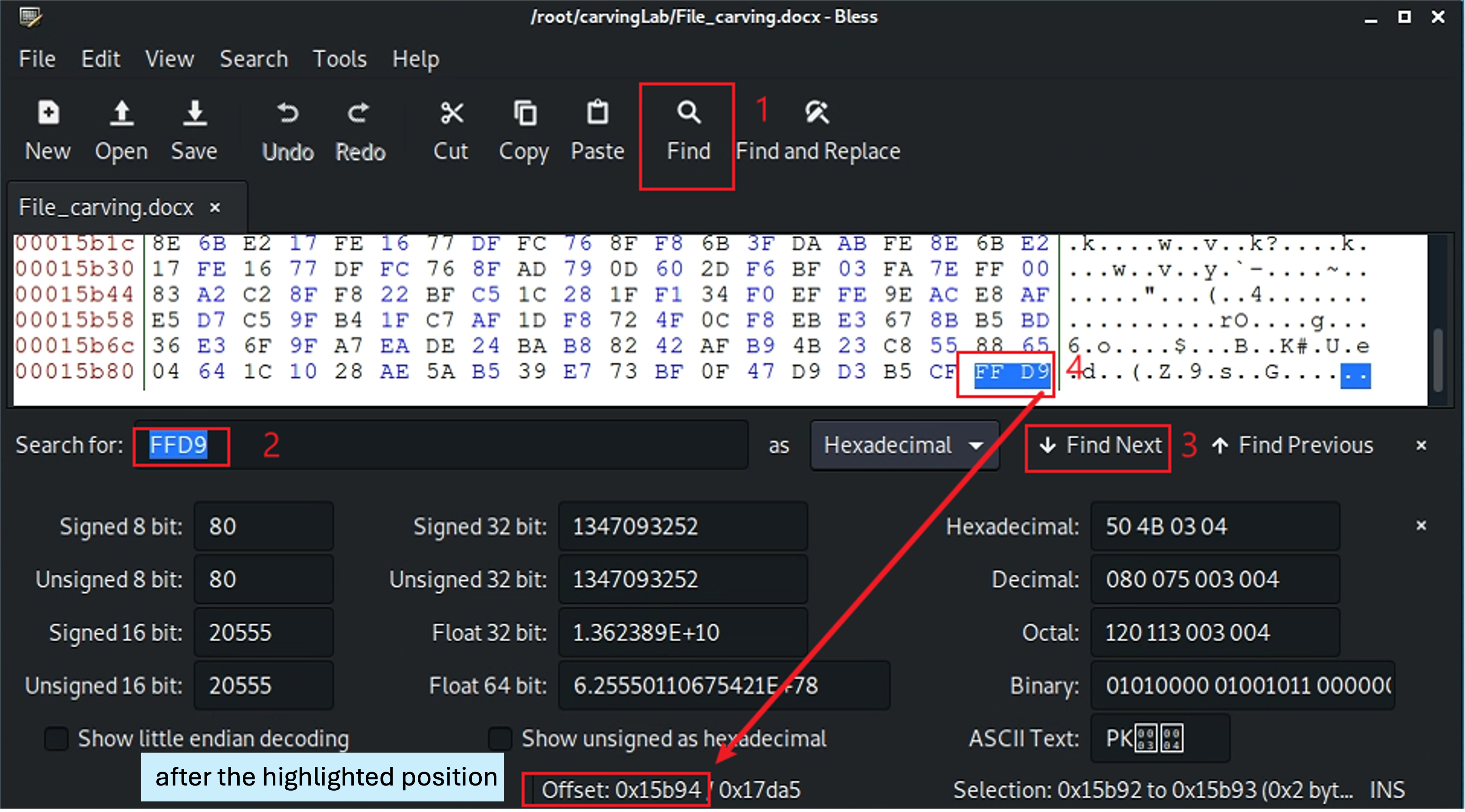

Step4: Locate JPEG Trailer
Search for:
FFD9
Trailer found at:
0x15B93
Carving must end after this trailer.
Step5: Convert Offsets to Decimal

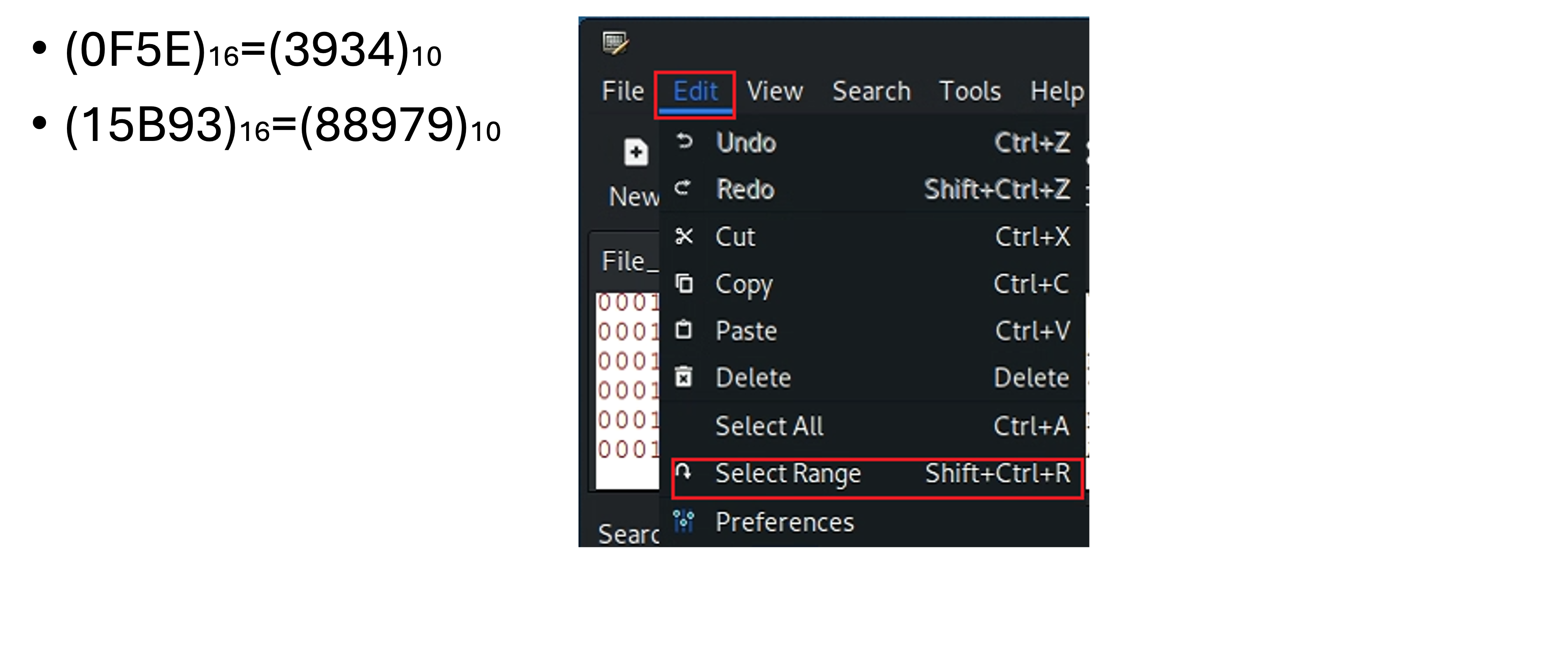

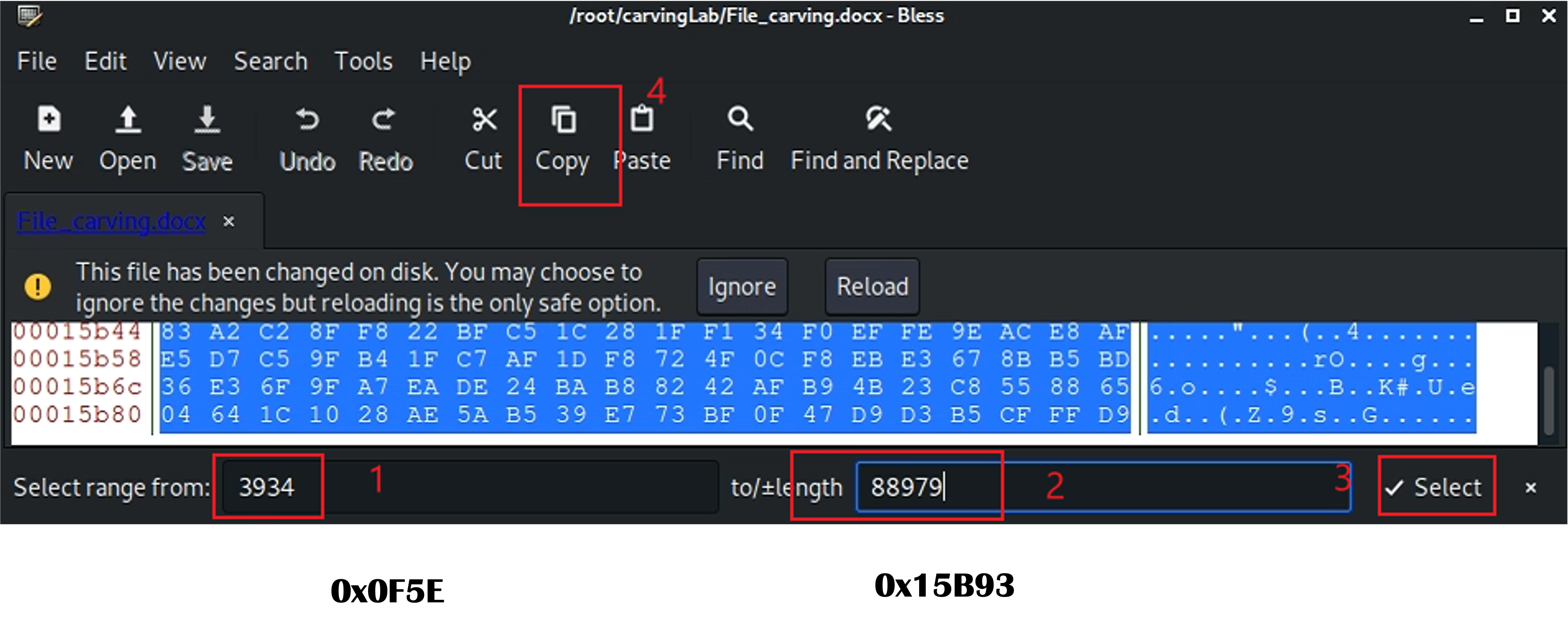

Step6: Select Hex Range (Bless) and Copy
-
Click
Edit -
Select
Select Range -
Enter:
Start: 3934 End: 88979

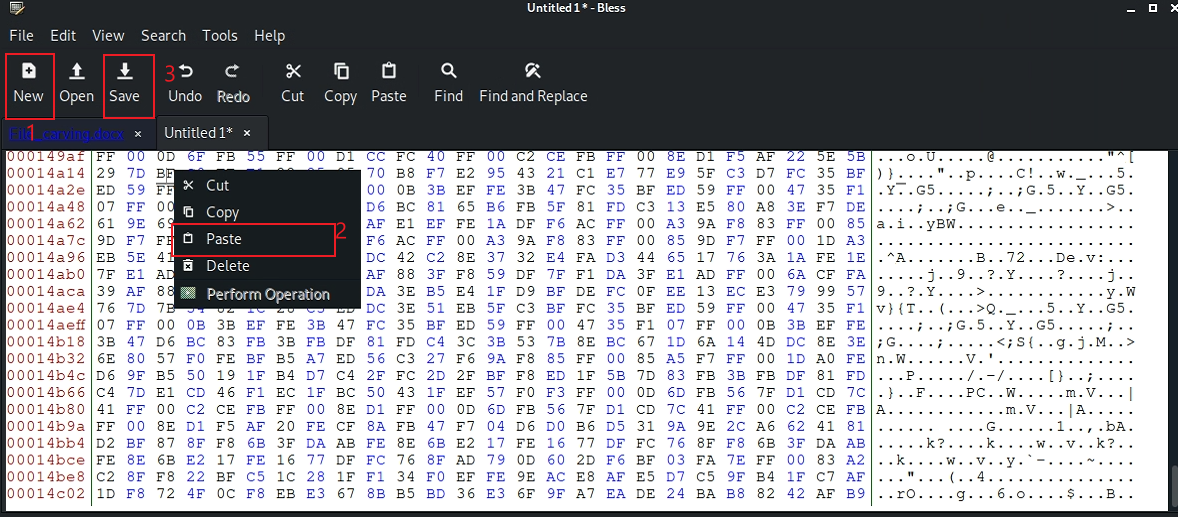

Step7: Paste and Save
- Open a new blank file in Bless
- Paste the copied data
- Save as:

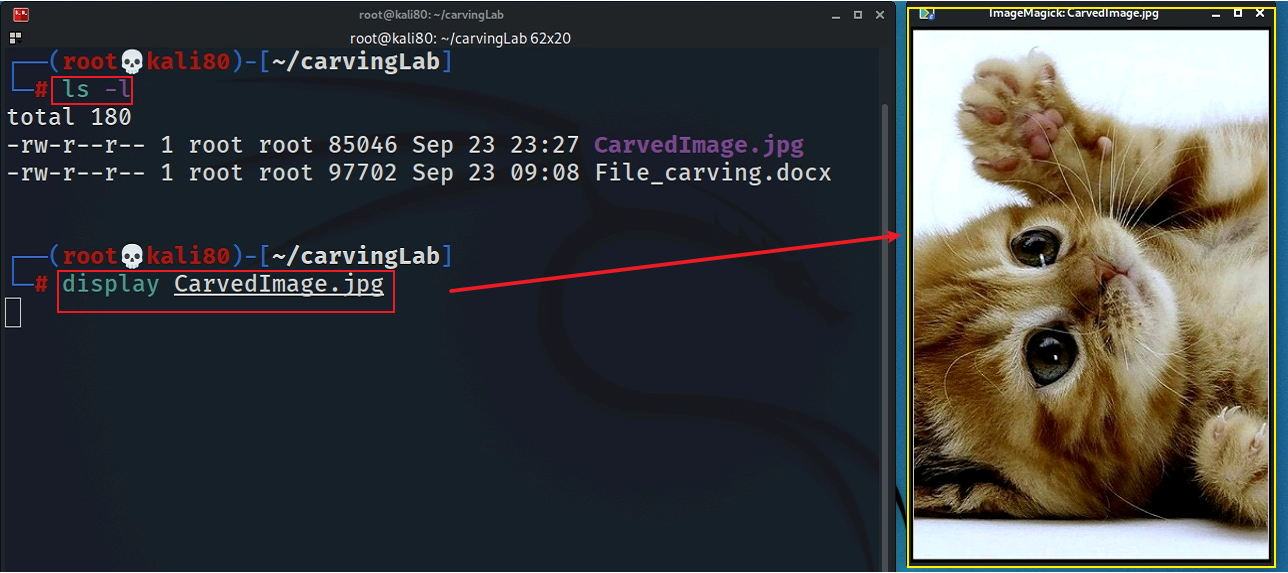

Step8: Verify the Carved Image
ls -l
display CarvedImage.jpg

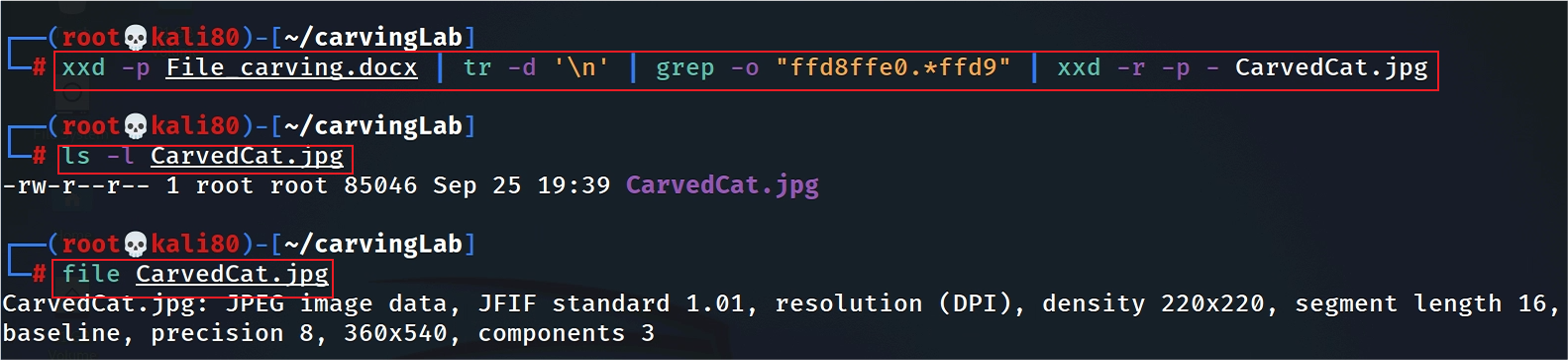

Alternative Method: Using xxd
You may need to install xxd tool
xxd -p File_carving.docx | tr -d 'n' | grep -o 'ffd8ffe9.*ffd9' | xxd -r -p > CarvedCat.jpg
Verify:
file CarvedCat.jpg
display CarvedCat.jpg
Reflection Questions
- Why is file carving necessary in digital forensics?
- What happens if the header or trailer offset is incorrect?
- Why does a Word file contain embedded headers?
- When would automated carving tools fail?
- How does file fragmentation affect carving?
Credit to: Xu, W., Deng, L. and Xu, D., 2022, June. Towards Designing Shared Digital Forensics Instructional Materials. In 2022 IEEE 46th Annual Computers, Software, and Applications Conference (COMPSAC) (pp. 117-122). IEEE.
